Amazon S3

The Amazon S3 data integration enables you to import files from S3 buckets into Databend. It supports CSV, Parquet, and NDJSON file formats, with options for one-time imports or continuous ingestion that automatically polls for new files.

Supported File Formats

Format	Description
CSV	Comma-separated values with configurable delimiters and headers
Parquet	Columnar storage format, efficient for analytical workloads
NDJSON	Newline-delimited JSON, one JSON object per line

Creating an S3 Data Source

1. Navigate to Data > Data Sources and click Create Data Source.

2. Select AWS - Credentials as the service type, and fill in the credentials:

Field	Required	Description
Name	Yes	A descriptive name for this data source
Access Key	Yes	AWS Access Key ID
Secret Key	Yes	AWS Secret Access Key

3. Click Test Connectivity to verify the credentials. If the test succeeds, click OK to save the data source.

tip

The AWS credentials must have read access to the target S3 bucket. If you plan to use the Clean Up Original Files option, write and delete permissions are also required.

Creating an S3 Integration Task

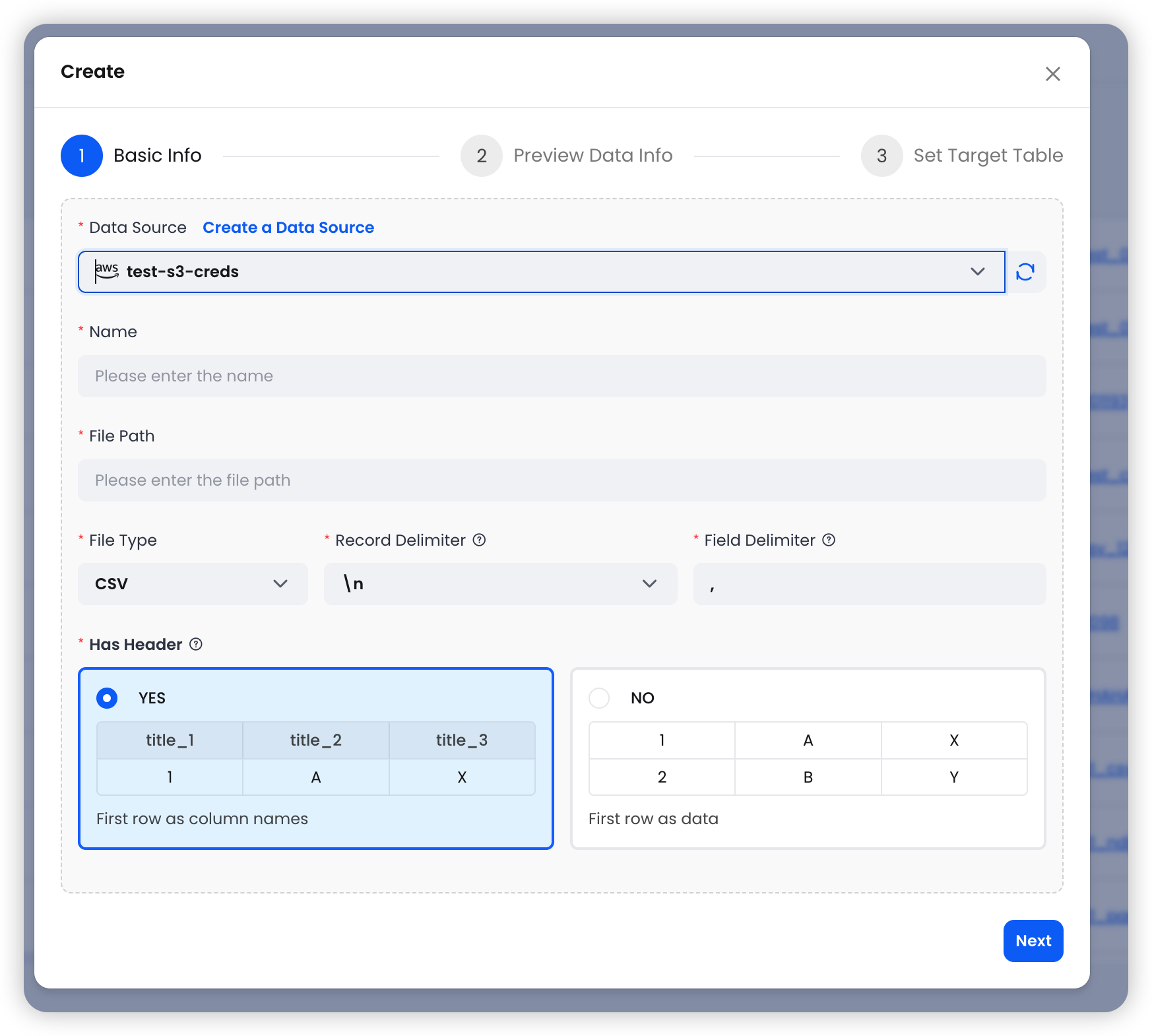

Step 1: Basic Info

1. Navigate to Data > Data Integration and click Create Task.

2. Select an S3 data source, then configure the basic settings:

Field	Required	Description
Data Source	Yes	Select an existing AWS data source from the dropdown
Name	Yes	A name for this integration task
File Path	Yes	S3 URI with optional wildcard pattern (e.g., s3://mybucket/data/2025-*.csv)
File Type	Auto	Auto-detected from file extension. Supported: CSV, Parquet, NDJSON

CSV Options

When the file type is CSV, additional options are available:

Field	Default	Description
Record Delimiter	\n	Line separator. Options: \n, \r, \r\n
Field Delimiter	,	Column separator. Supports custom values
Has Header	Yes	Whether the first row contains column names. If disabled, columns are auto-named as c1, c2, c3, etc.

File Path Patterns

The file path supports wildcard patterns for matching multiple files:

s3://mybucket/data/2025-*.csv        # All CSV files starting with "2025-"
s3://mybucket/logs/*.parquet         # All Parquet files in the logs directory
s3://mybucket/events/data.ndjson     # A single specific file

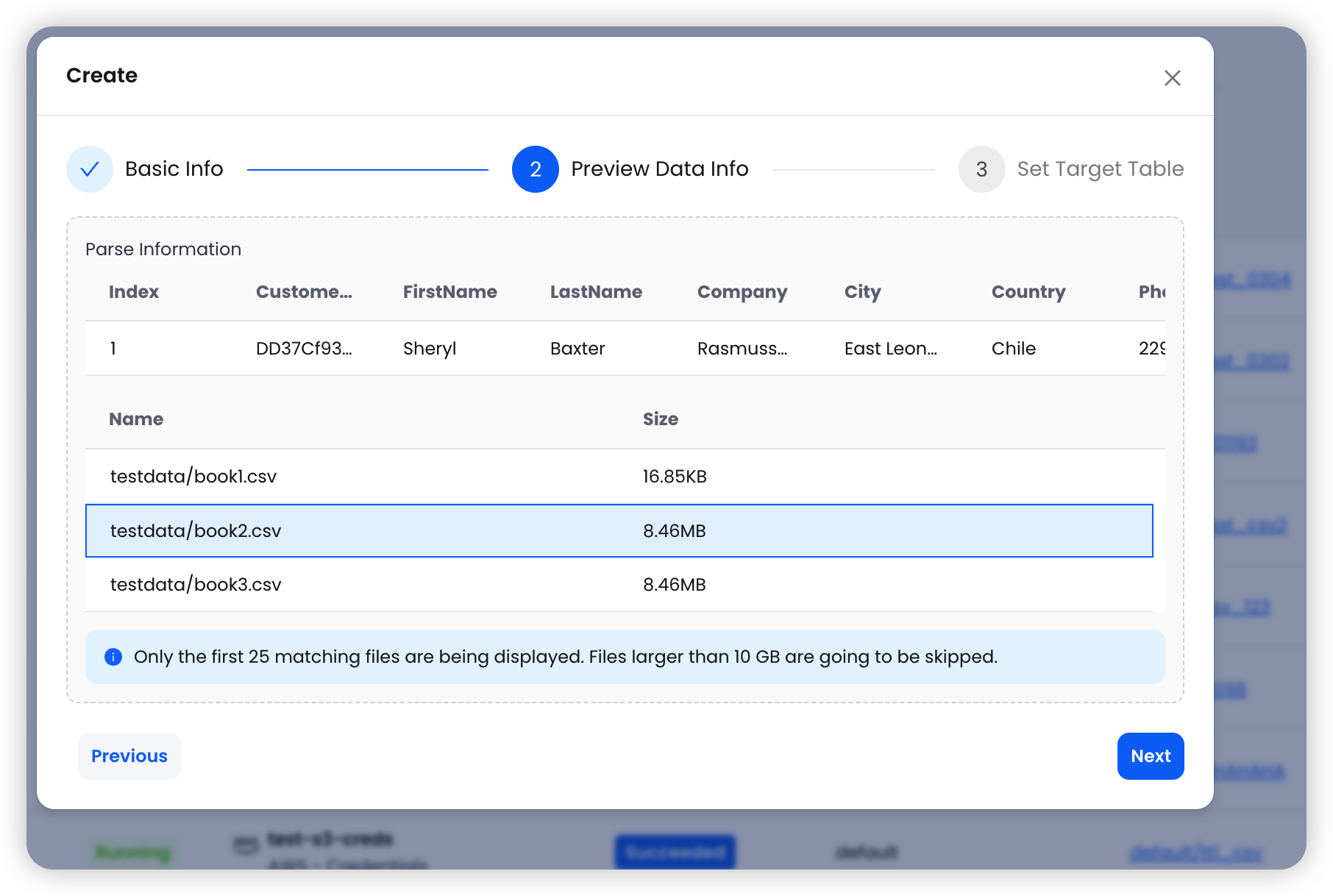

Step 2: Preview Data

After configuring the basic settings, click Next to preview the source data.

The system reads the first matching file and displays:

• Sample data with column names and types
• A list of matching files (up to 25 files) with their sizes

note

Files larger than 10GB are skipped during preview. Only the first 25 matching files are displayed.

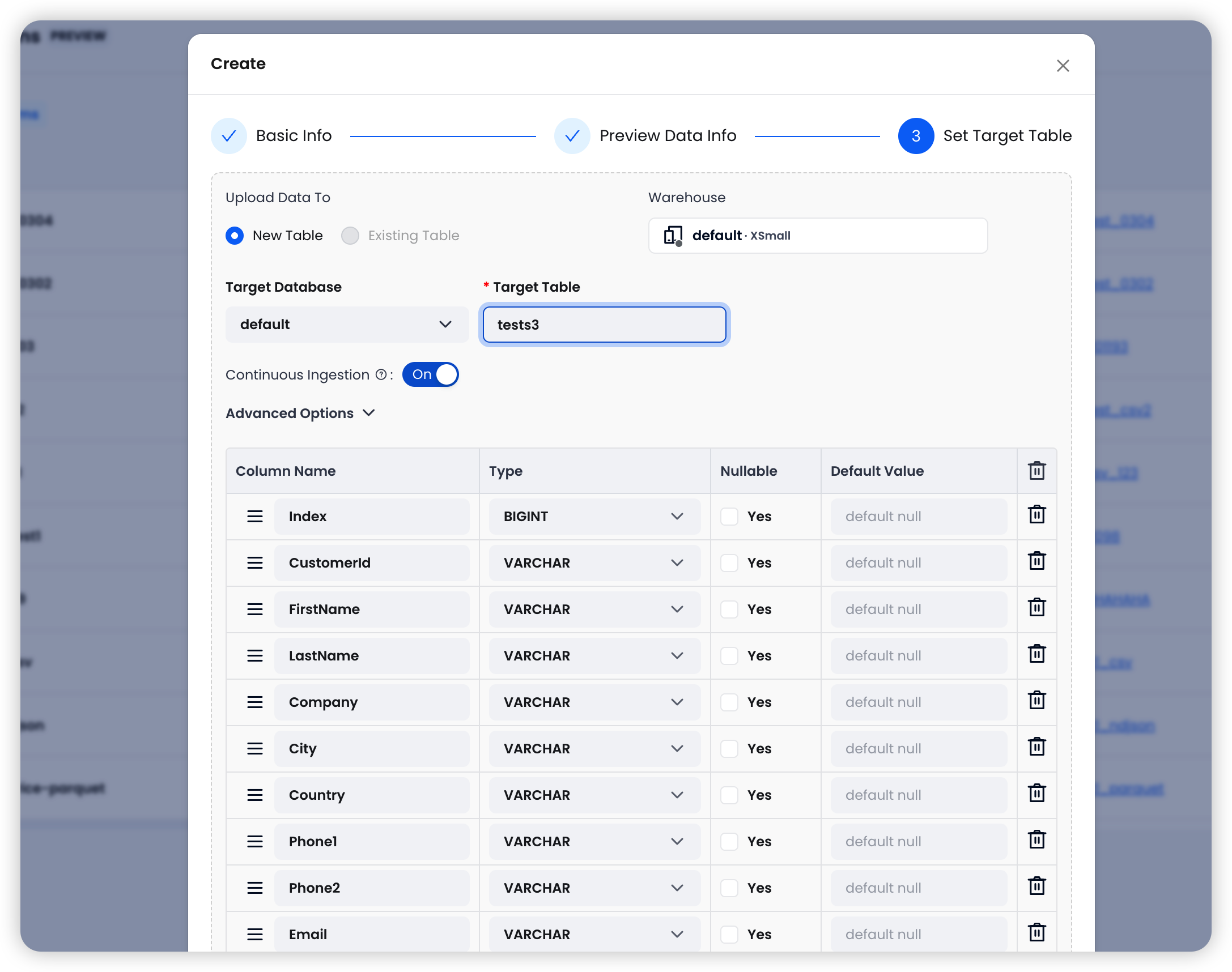

Step 3: Set Target Table

Configure the destination in Databend:

Field	Description
Warehouse	Select the target Databend Cloud warehouse for running the import
Target Database	Choose the target database in Databend
Target Table	The table name in Databend

The system auto-detects columns from the source files. You can review and edit column names and types before proceeding.

Ingestion Options

Option	Default	Description
Continuous Ingestion	On	When enabled, the system periodically (every 30 seconds) polls the S3 path and imports new files
Error Handling	Abort	Abort: Stop on first error. Continue: Skip failed rows and continue importing
Clean Up Original Files	Off	When enabled, deletes source files from S3 after successful import
Allow Duplicate Imports	Off	When enabled, allows re-importing files that have already been imported

tip

Enable Continuous Ingestion when new files are regularly added to the S3 path and you want them automatically loaded into Databend. Disable it for one-time imports.

Click Create to finalize the integration task.

Task Behavior

Continuous Ingestion	Behavior
On	Runs continuously, polling S3 every 30 seconds for new files and importing them automatically.
Off	Imports matching files once and stops. Already-imported files are skipped unless Allow Duplicate Imports is enabled.

Advanced Configuration

Continuous Ingestion

When enabled, the task runs as a long-lived process that periodically scans the S3 path for new files. Each cycle:

1. Lists objects matching the file path pattern
2. Identifies new files not yet imported
3. Imports new files into the target table using COPY INTO
4. Records import results in the task history

This is useful for data pipelines where upstream systems continuously write new files to S3.

Error Handling

• Abort (default): The import stops at the first error encountered. Use this when data quality is critical and you want to investigate any issues before proceeding.
• Continue: Skips rows that cause errors and continues importing the remaining data. Use this when partial imports are acceptable and you want to maximize data throughput.

Clean Up Original Files (PURGE)

When enabled, source files are deleted from S3 after they are successfully imported into Databend. This helps manage storage costs and prevents reprocessing. Ensure your AWS credentials have s3:DeleteObject permission on the target bucket.

Allow Duplicate Imports (FORCE)

By default, the system tracks which files have been imported and skips them in subsequent runs. Enabling this option forces re-import of all matching files, regardless of whether they have been previously imported. This is useful when you need to reload data after schema changes or data corrections.
