PostgreSQL Integration Task

This page describes how to create a PostgreSQL integration task that synchronizes data from a PostgreSQL database into Databend. PostgreSQL tasks support full Snapshot loads, continuous Change Data Capture (CDC), or a combination of both.

If you need to create reusable PostgreSQL connection settings first, see PostgreSQL - Credentials.

Sync Modes

Sync Mode	Description
Snapshot	Performs a one-time full data load from the source table. Ideal for initial data migration or periodic bulk imports.
CDC Only	Continuously captures real-time changes (inserts, updates, deletes) via PostgreSQL logical replication. Requires a primary key for merge operations.
Snapshot + CDC	First performs a full snapshot, then seamlessly transitions to continuous CDC. Recommended for most use cases.

Prerequisites

Before setting up PostgreSQL data integration, ensure your PostgreSQL instance meets the following requirements:

• A PostgreSQL - Credentials data source has already been created
• The target PostgreSQL instance is reachable from Databend Cloud
• PostgreSQL version 10 or later

Enable Logical Replication

PostgreSQL WAL (Write-Ahead Log) must be configured with logical level for CDC and Snapshot + CDC modes:

postgresql.conf

wal_level = logical
max_replication_slots = 4
max_wal_senders = 4

After modifying the configuration, restart PostgreSQL for the changes to take effect.

Create a Dedicated User (Recommended)

Create a PostgreSQL user with the necessary permissions for data replication:

CREATE USER databend_cdc WITH PASSWORD 'your_password' REPLICATION;
GRANT CONNECT ON DATABASE your_database TO databend_cdc;
GRANT USAGE ON SCHEMA public TO databend_cdc;
GRANT SELECT ON ALL TABLES IN SCHEMA public TO databend_cdc;
ALTER DEFAULT PRIVILEGES IN SCHEMA public GRANT SELECT ON TABLES TO databend_cdc;

Create Publication and Replication Slot (Required for CDC)

For CDC and Snapshot + CDC modes, a publication and replication slot must exist. Because CREATE PUBLICATION ... FOR ALL TABLES requires superuser privileges, and adding individual tables requires table ownership, these objects should be created by a database owner or superuser before starting the CDC task.

Run the following as a superuser or database owner:

-- Create a publication that includes the tables you want to replicate
CREATE PUBLICATION bend_cdc_pub FOR ALL TABLES;

-- Create a logical replication slot
SELECT * FROM pg_create_logical_replication_slot('bend_cdc_slot', 'pgoutput');

-- Grant the dedicated user permission to use the replication slot
ALTER ROLE databend_cdc WITH REPLICATION;

note

If you only need to replicate specific tables instead of all tables, you can use:

CREATE PUBLICATION bend_cdc_pub FOR TABLE table1, table2;

This avoids the superuser requirement but still requires ownership of the listed tables.

Network Access

Ensure the PostgreSQL instance is accessible from Databend Cloud. Check your firewall rules and security groups to allow inbound connections on the PostgreSQL port.

Creating a PostgreSQL Integration Task

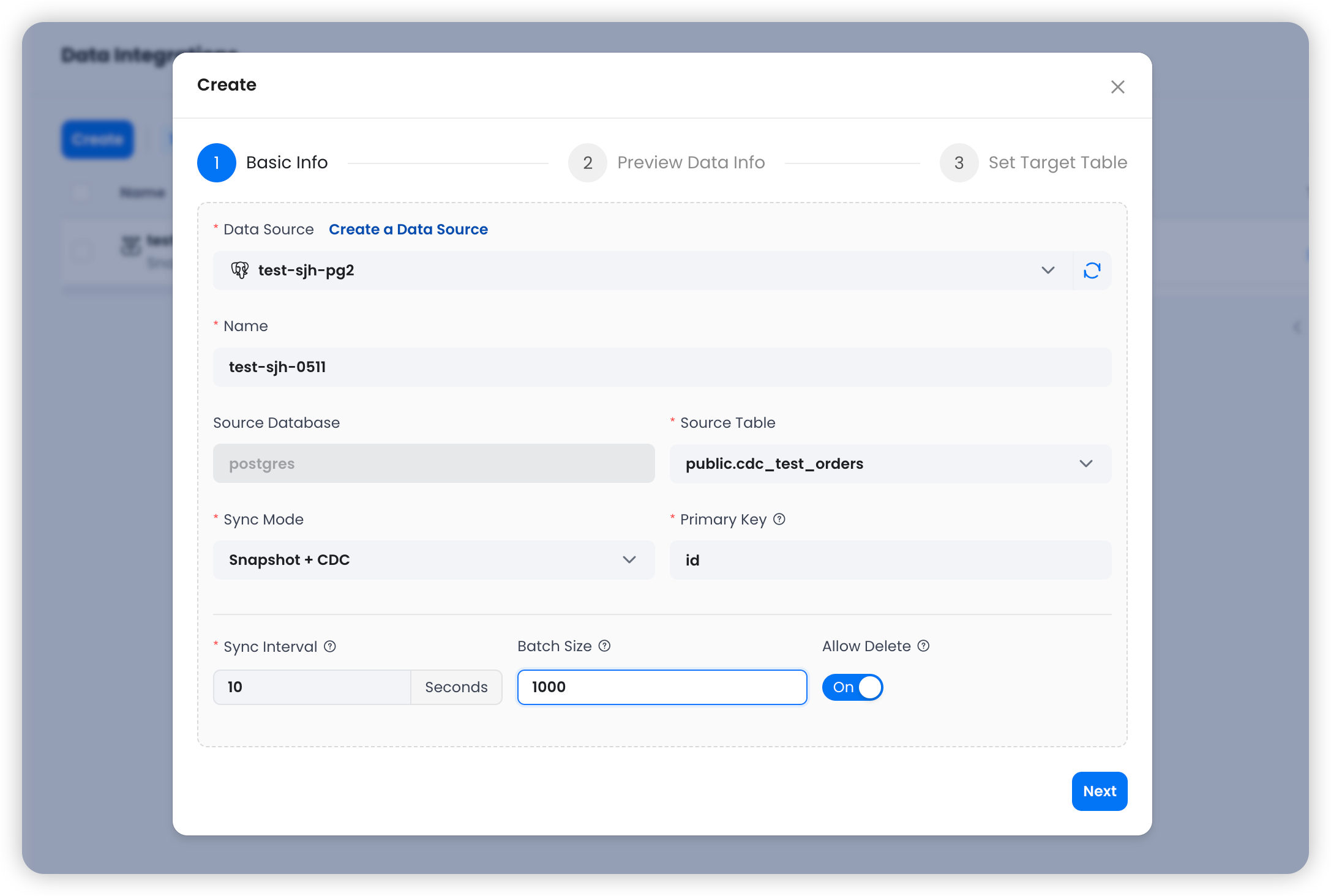

Step 1: Basic Info

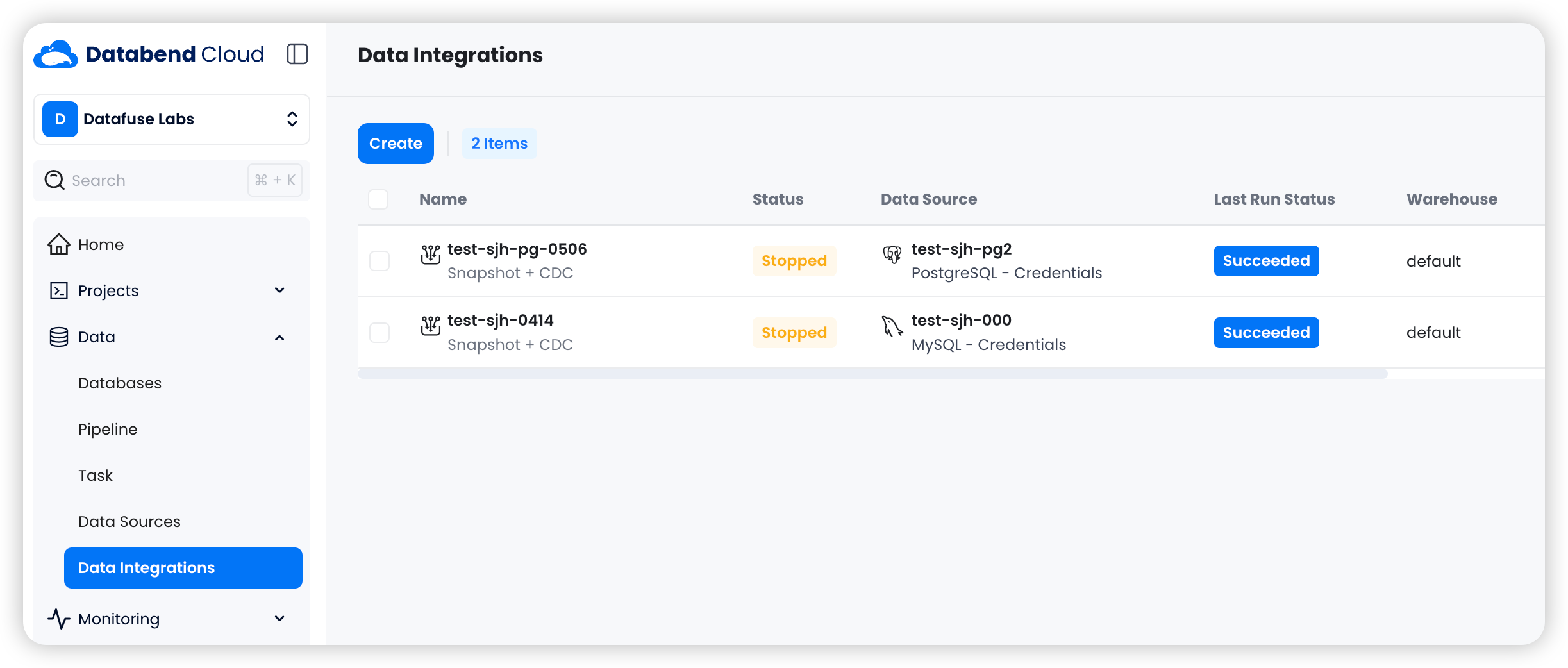

1. Navigate to Data > Data Integration and click Create Task.

2. Configure the basic settings:

Field	Required	Description
Data Source	Yes	Select an existing PostgreSQL - Credentials data source from the dropdown
Name	Yes	A name for this integration task
Source Database	—	Automatically displayed based on the selected data source
Source Table	Yes	Select the table to sync from the PostgreSQL database
Sync Mode	Yes	Choose from Snapshot, CDC Only, or Snapshot + CDC
Primary Key	Conditional	The unique identifier column for merge operations. Required for CDC Only and Snapshot + CDC modes
Sync Interval	Yes	Interval (in seconds) between write operations (default: 3)
Batch Size	No	Number of rows per batch
Allow Delete	No	Whether to permit DELETE operations in CDC. Available for CDC Only and Snapshot + CDC modes

Snapshot Mode Options

When using Snapshot mode, an additional option is available:

• Snapshot WHERE Condition: A SQL WHERE clause to filter data during the snapshot (e.g., created_at > '2024-01-01'). This allows you to load only a subset of the source data.

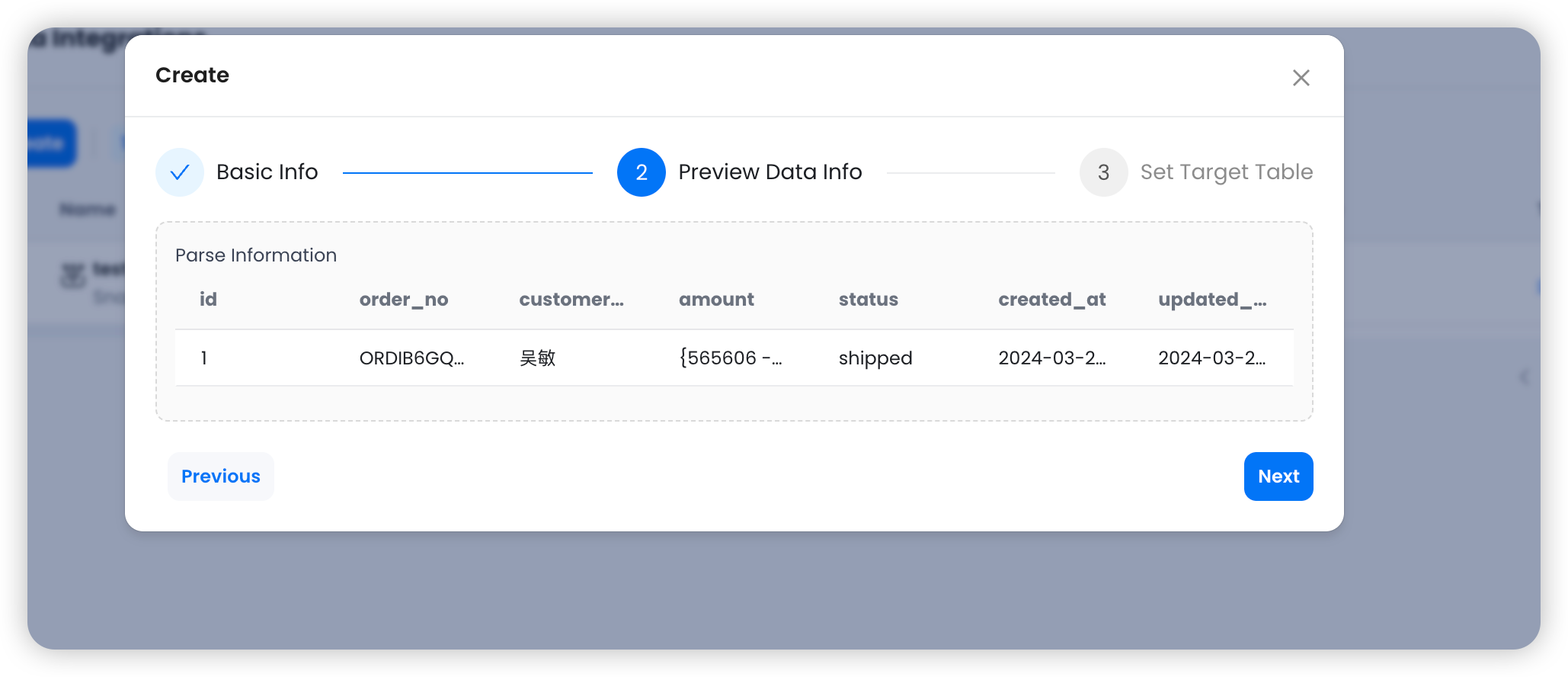

Step 2: Preview Data

After configuring the basic settings, click Next to preview the source data.

The system fetches a sample row from the selected PostgreSQL table and displays the column names and data types. Review the data to ensure the correct table and columns are selected before proceeding.

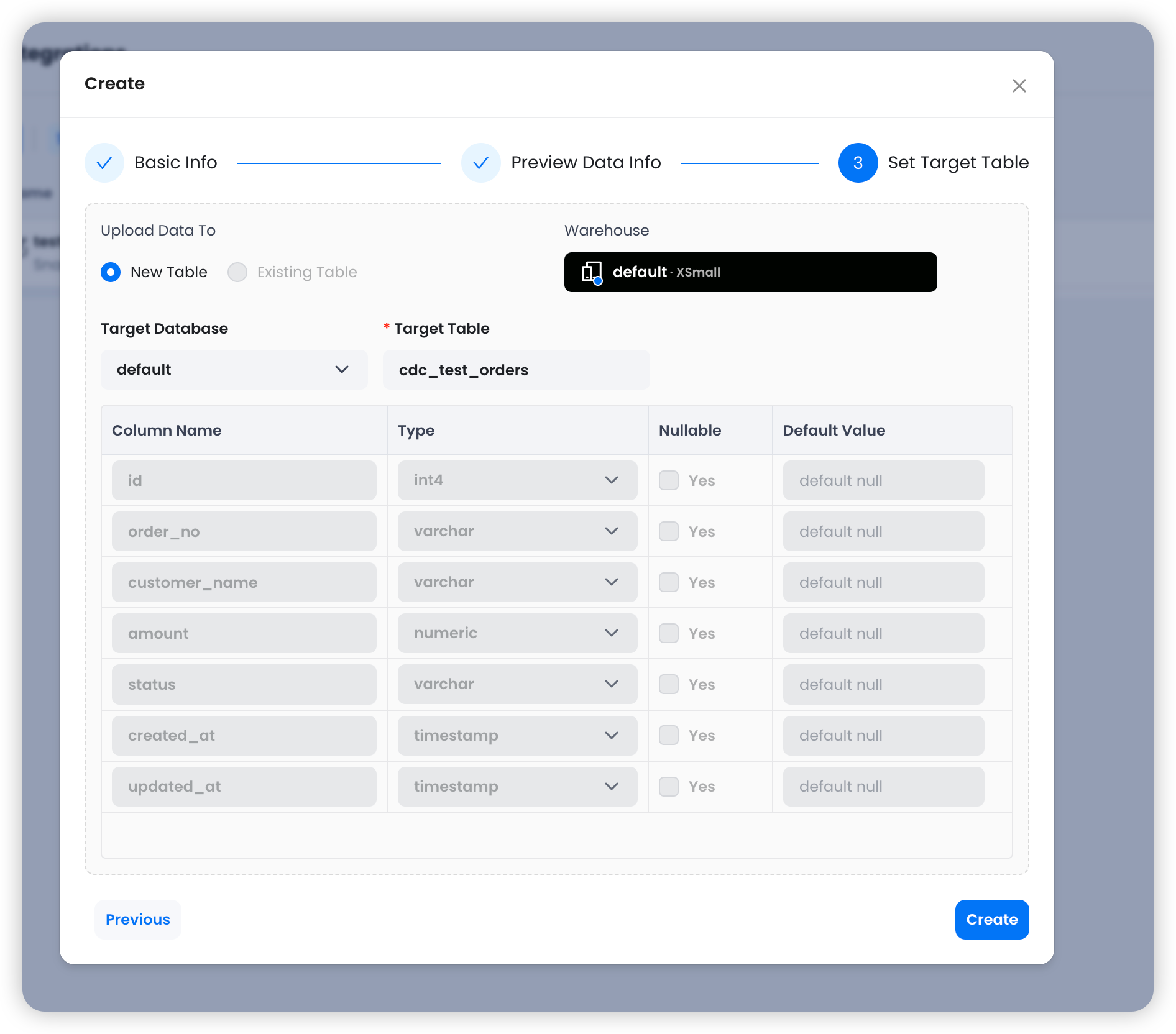

Step 3: Set Target Table

Configure the destination in Databend:

Field	Description
Warehouse	Select the target Databend Cloud warehouse for running the sync
Target Database	Choose the target database in Databend
Target Table	The table name in Databend (defaults to the source table name)

The system automatically maps source columns to the target table schema. Review the column mappings, then click Create to finalize the integration task.

Task Behavior by Sync Mode

Sync Mode	Behavior
Snapshot	Runs once and automatically stops after the full data load is complete.
CDC Only	Runs continuously, capturing real-time changes until manually stopped.
Snapshot + CDC	Completes the initial snapshot first, then transitions to continuous CDC until manually stopped.

For CDC tasks, the current LSN (Log Sequence Number) is saved as a checkpoint when stopped, allowing the task to resume from where it left off when restarted.

Sync Mode Details

Snapshot

Snapshot mode performs a one-time full read of the source table and loads all data into the target table in Databend.

Use cases:

• Initial data migration from PostgreSQL to Databend
• Periodic full data refresh
• One-time data imports with WHERE condition filtering

Features:

• Supports WHERE condition filtering to load a subset of data
• Task automatically stops after completion

CDC (Change Data Capture)

CDC mode continuously monitors the PostgreSQL WAL (Write-Ahead Log) via logical replication and captures real-time row-level changes (INSERT, UPDATE, DELETE) from the source table.

Use cases:

• Real-time data replication
• Keeping Databend in sync with operational PostgreSQL databases
• Event-driven data pipelines

How it works:

1. Connects to PostgreSQL using a logical replication slot
2. Captures row-level changes in real-time via the pgoutput plugin
3. Writes changes to a raw staging table in Databend
4. Periodically merges changes into the target table using the primary key
5. Saves checkpoint (LSN position) for crash recovery

note

CDC mode requires PostgreSQL WAL level set to logical, and a primary key (unique column) must be specified. The PostgreSQL user must have REPLICATION privilege.

Snapshot + CDC

This mode combines both approaches: it first performs a full snapshot of the source table, then seamlessly transitions to CDC mode for continuous change capture. This is the recommended mode for most data integration scenarios, as it ensures a complete initial data load followed by ongoing real-time synchronization.

Advanced Configuration

Primary Key

The primary key specifies the unique identifier column used for MERGE operations during CDC. When a change event is captured, Databend uses this key to determine whether to insert a new row or update an existing one. Typically, this should be the primary key of the source table.

Sync Interval

The sync interval (in seconds) controls how frequently captured changes are merged into the target table. A shorter interval provides lower latency but may increase resource usage. The default value of 3 seconds is suitable for most workloads.

Batch Size

Controls the number of rows processed per batch during data loading. Adjusting this value can help optimize throughput for large tables. Leave empty to use the system default.

Allow Delete

When enabled (default for CDC modes), DELETE operations captured from PostgreSQL WAL are applied to the target table in Databend. When disabled, deletes are ignored, and the target table retains all historical records. This is useful for scenarios where you want to maintain a complete audit trail.
